MF 135 Engine & Accessories — Parts Diagram

Click a hotspot on the diagram to view part details and cross-references.

← Engine & Accessories Assembly MF 135 Catalog Service Reference

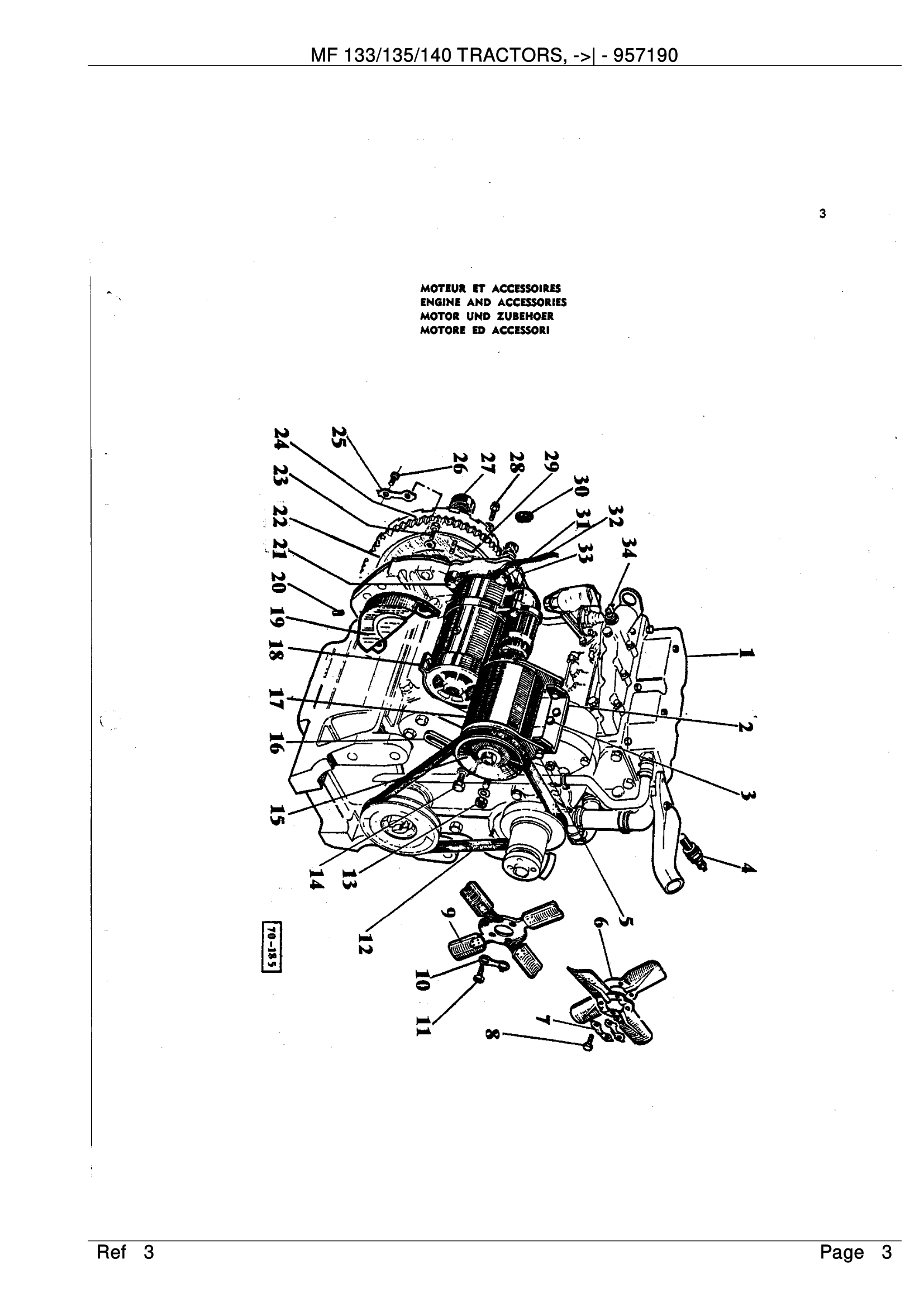

MF 135 engine and accessories exploded parts diagram

Source: Massey Ferguson Parts Catalogue 957190, page 3

Parts in this diagram

964085M1Engine 963929M1Blade Fan 825181M91Fan1 xrefs 962184M1Belt3 xrefs 960028M1Pulley 960022M1Dynamo3 xrefs 968856M1Startermotor2 xrefs 738471M91Flywheel
