MF 135 Front Axle — Parts Diagram

Click a hotspot on the diagram to view part details and cross-references.

← Front Axle Assembly MF 135 Catalog Service Reference

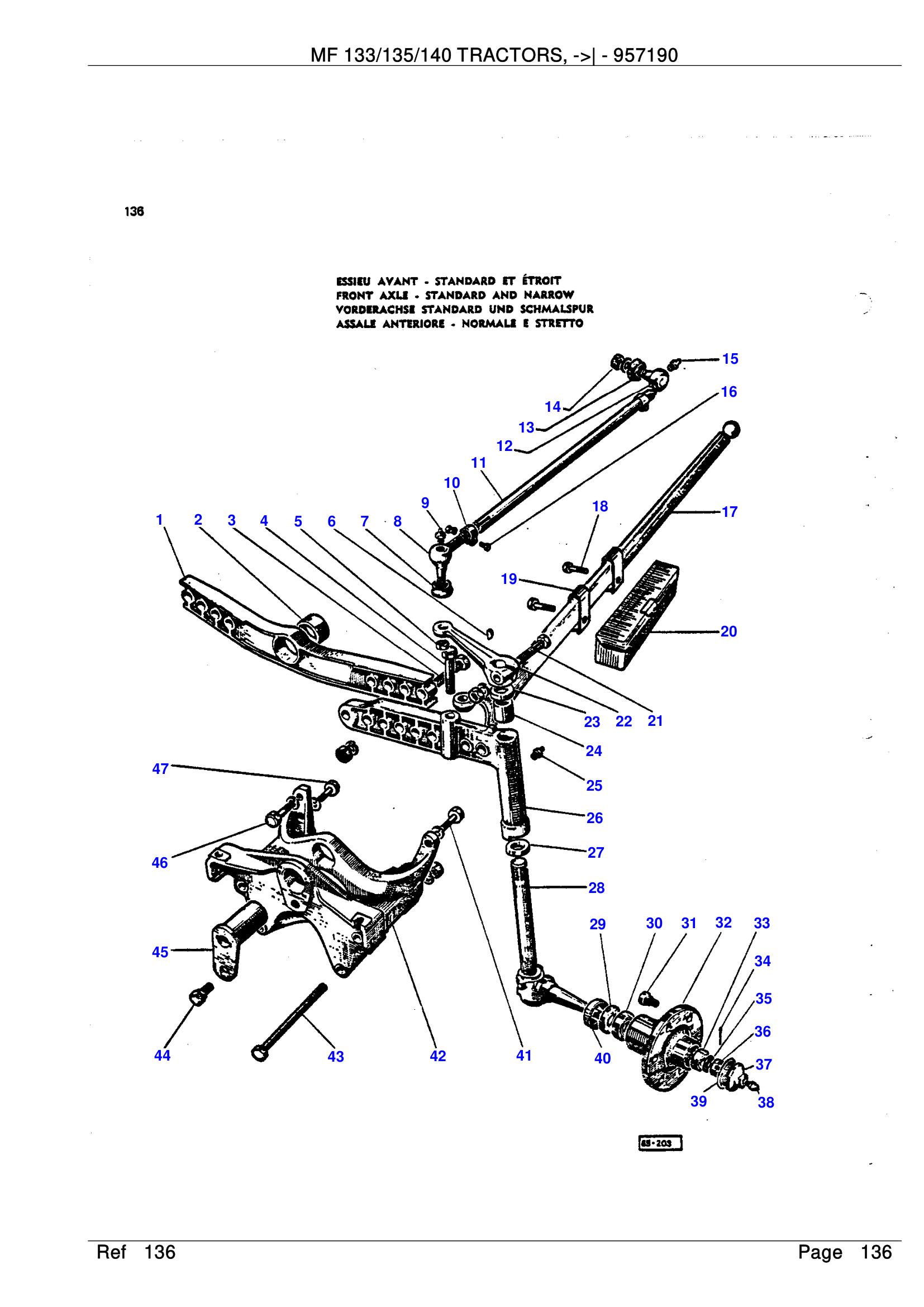

MF 135 front axle standard and narrow exploded parts diagram

Source: Massey Ferguson Parts Catalogue 957190, page 136

Parts in this diagram

183219M91Axle 182850M1Bush3 xrefs 897236M93Spindle 968406M91Joint1 xrefs 968405M91Ball1 xrefs 195175M1Bearing1 xrefs 897242M1Front Wheel Hub Seal1 xrefs 180345M1Bush1 xrefs
