MF 135 Hydraulic Pump — Parts Diagram

Click a hotspot on the diagram to view part details and cross-references.

← Hydraulic Pump Assembly ← Pump Seal Kits Assembly MF 135 Catalog Service Reference

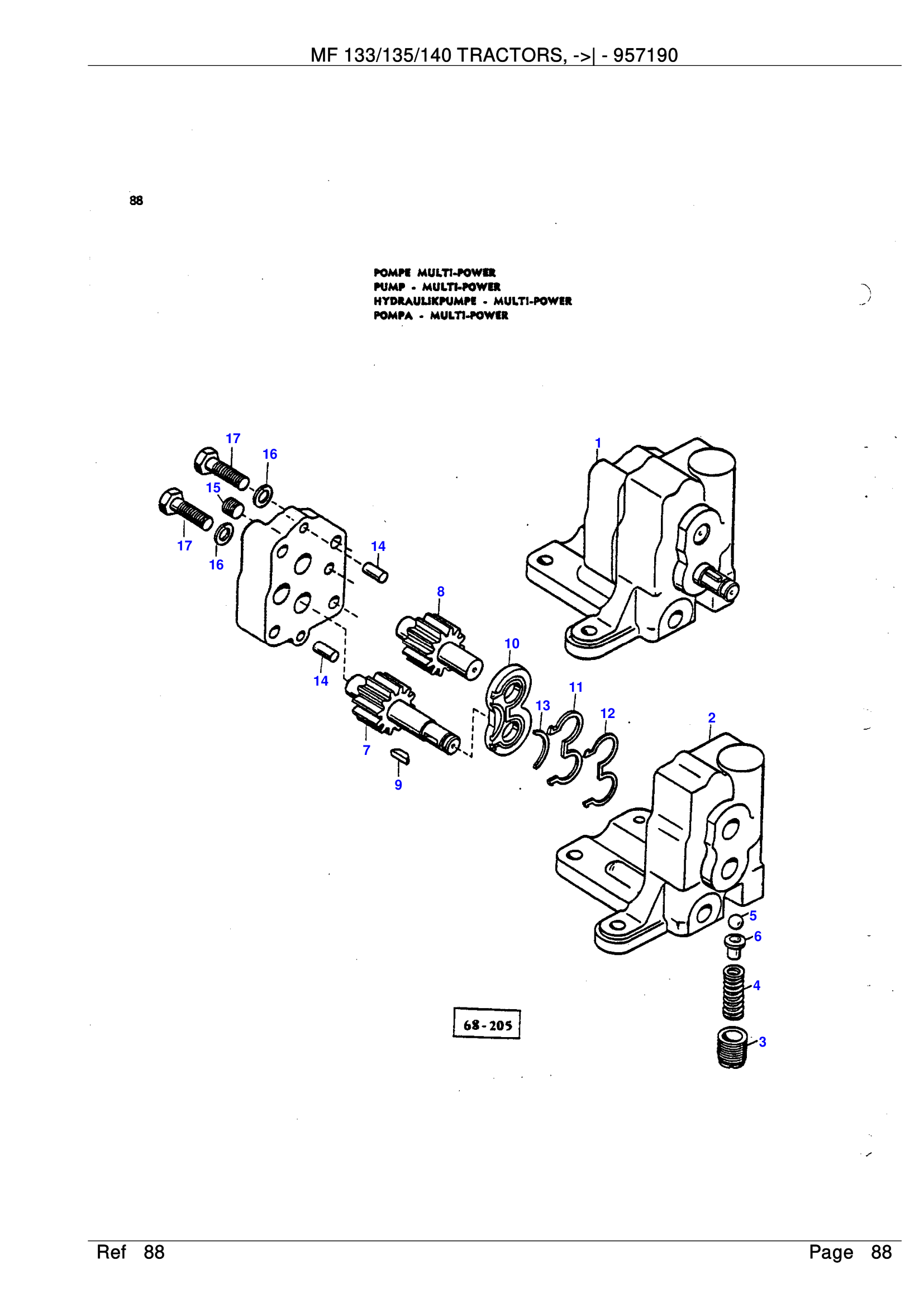

MF 135 hydraulic pump exploded parts diagram

Source: Massey Ferguson Parts Catalogue 957190, page 88

Parts in this diagram

1810467M91Hydraulic Lift Pump Seal Kit2 xrefs 513592M91Hydraulic Pump1 xrefs 1033475M91Body 1033482M1Screw 1033483M1Spring 1033476M1Pinion 1033477M1Pinion 1033479M1Seal
