MF 135 8-Speed Transmission — Parts Diagram

Click a hotspot on the diagram to view part details and cross-references.

← 8 Speed Gear Box Assembly MF 135 Catalog Service Reference

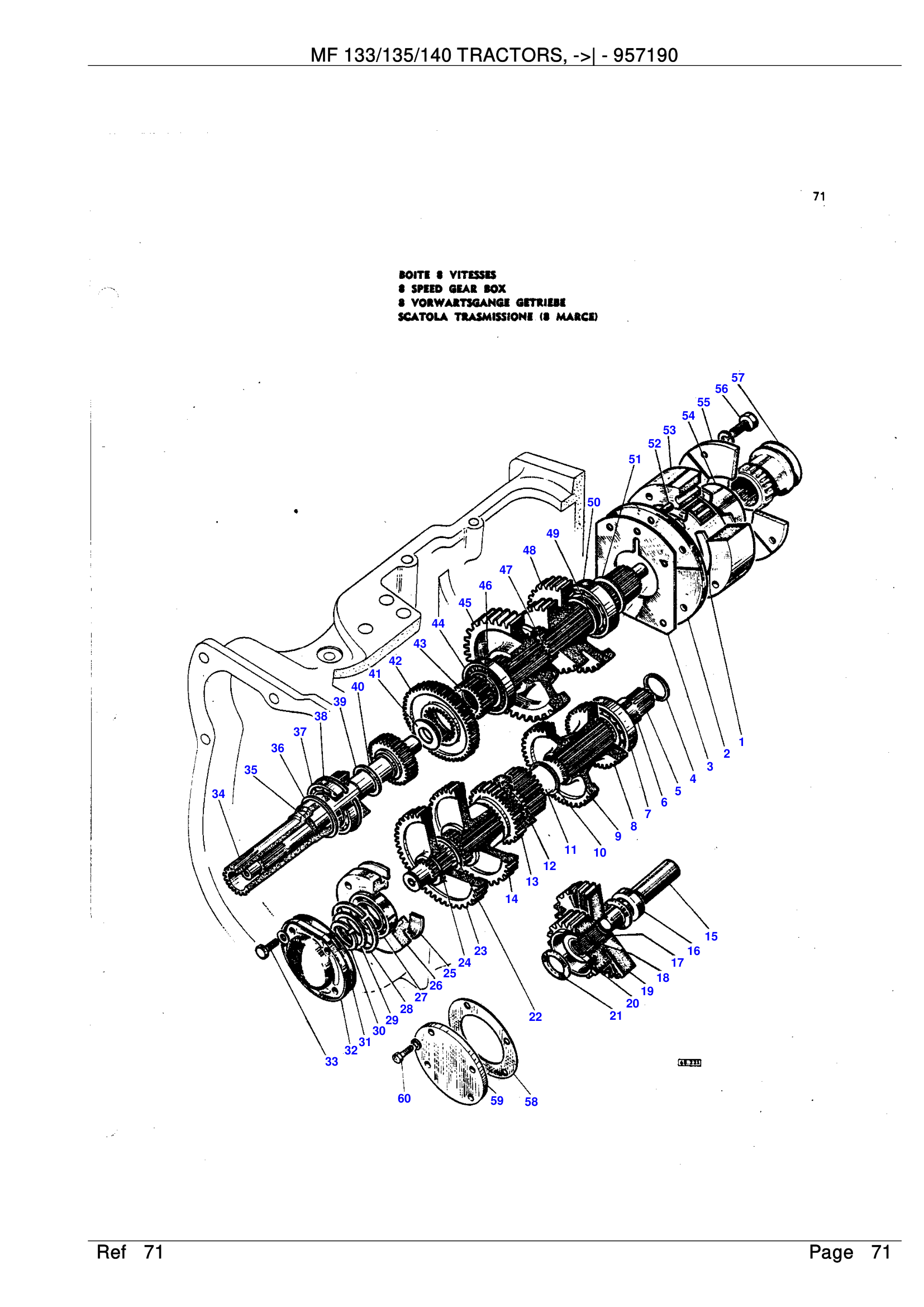

MF 135 8-speed transmission exploded parts diagram

Source: Massey Ferguson Parts Catalogue 957190, page 71

Parts in this diagram

899330M1Shaft 899331M1Housing 899329M1Gear 964892M91Shaft 1860011M1Seal1 xrefs 964918M91Shaft 195507M1Bearing Ball5 xrefs 195493M1Bearing5 xrefs
